* higher pressures and temperatures on request
** depending on size and speed

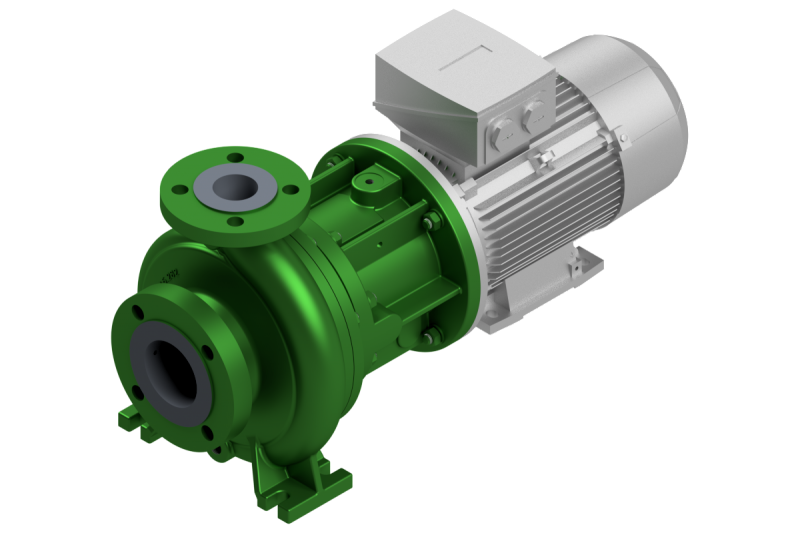

Type KMB
single-stage volute casing pump according to ISO 2858 with magnetic coupling
Q max: 100 m³/h [440 g.p.m.]**
H max: 80 m [262 ft]**
operating pressure: 16/24/40 bar [232/348/580 psi]*
temperature: 180° C [356° F]*
Type KMB is a volute casing pump with housing dimensions according to ISO 2858 and simple magnetic coupling.
The size selection is limited.
The pump has a permanent magnet coupling, and the containment shell hermetically seals the fluid to the outside.
The bearing of the pump shaft takes place in a SiC plain bearing.
The direct mounting of the drive motor eliminates additional bearings and the mechanical coupling.
- oil & gas
- chemistry
- petrochemistry
- offshore
- ship technology / marine
- refueling equipment & aviation
- industrial heating systems / heat carrier
- tank storages / tank farms
- renewable energy / environmental engineering
Q max: 100 m³/h [440 g.p.m.]**
H max: 80 m [262 ft]**
operating pressure: 16/24/40 bar [232/348/580 psi]*
temperature: 180° C [356° F]*
max rotational speed: 3500 min−1
gasket/mechanical seal: magnetic coupling
installation: horizontal
self-priming: no
bearing: plain bearing
lubrication: grease
materials: duplex, Ni-based, spheroidal graphite iron / cast steel, austenitic steel
standards: ISO 15783
explosion protection: category 2 / zone 1
