* higher pressures and temperatures on request
** depending on size and speed

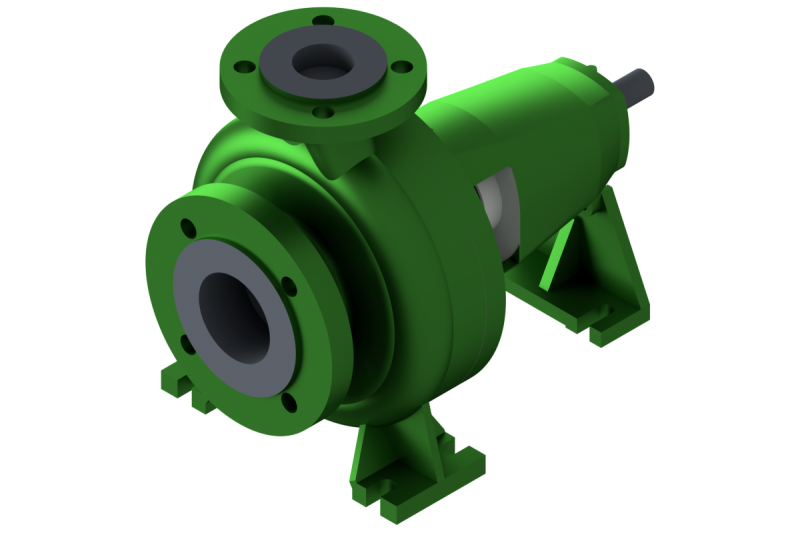

Type NKL
single-stage, standard pump according to EN 733 / ISO 5199 with mechanical seal
Q max: 500 m³/h**
H max: 140 m**
operating pressure: 10 bar*
temperature: 180 °C*
Type NKL is a standard pump PN10 according to EN 733.
The sizes deviating from the characteristic field and the requirements of the operator are adapted and they are graduated in such a way that the best possible efficiency is achieved.
This pump is a single-stage, single-flow volute casing pump in a lightweight design, with axial suction port and centered, vertically upward pointing discharge port.
The axial thrust compensation takes place through relief bores.
The pump shaft is mounted in two permanently lubricated deep groove ball bearings.
- oil & gas
- chemistry
- petrochemistry
- offshore
- ship technology / marine
- refueling equipment & aviation
- industrial heating systems / heat carrier
- tank storages / tank farms
- renewable energy / environmental engineering
Q max: 500 m³/h**
H max: 140 m**
operating pressure: 10 bar*
temperature: 180 °C*
max rotational speed: 3500 min−1
gasket/mechanical seal: mechanical seal
installation: horizontal
self-priming: no
bearing: rolling bearing
lubrication: grease
materials: spheroidal graphite iron / cast steel
standards: DIN EN 733, ISO 5199
explosion protection: category 2 / zone 1
