* higher pressures and temperatures on request
** depending on size and speed

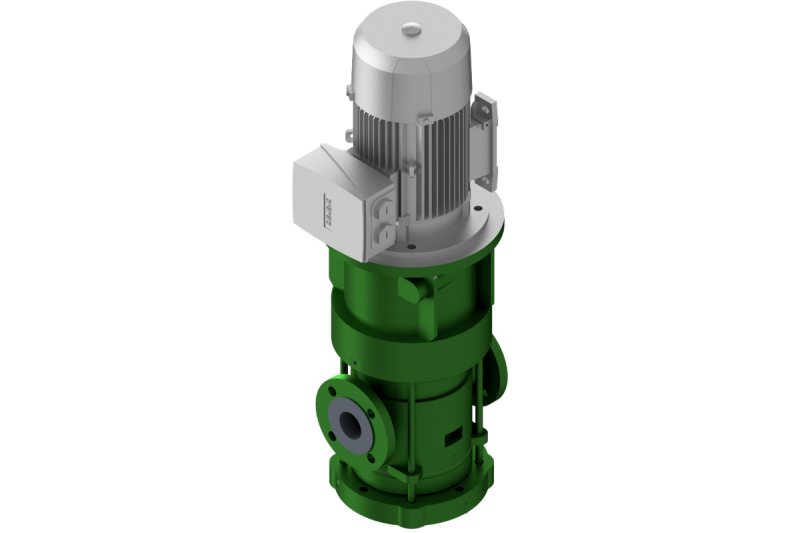

Type SMV
single-stage side channel pump with permanent magnet coupling, positioned vertically
Q max: 32 m³/h [141 g.p.m.]**
H max: 70 m [230 ft]**
operating pressure: 10 bar [232 psi]*
temperature: 120° C [248° F]*
Type SMV is a single-stage, self-priming side channel pump in a vertical position with opposing suction and discharge ports.
In addition to the self-priming ability side channel pumps have the advantage due to their high pressure factor to work more economically when pumping small flow rates against relatively high pressure level than normal centrifugal pumps.
The atmosphere is sealed by chambered O-rings.
The bearing of the pump shaft takes place in plain bearings.The pump has a permanent magnet coupling, and the containment shell hermetically seals the fluid to the outside.
An internal circulation current dissipates the heat generated by the eddy current losses.
The additional motor is directly mounted, additional rolling bearings and a mechanical coupling omitted.
- oil & gas
- chemistry
- petrochemistry
- offshore
- ship technology / marine
- refueling equipment & aviation
- tank storages / tank farms
- renewable energy / environmental engineering
Q max: 32 m³/h [141 g.p.m.]**
H max: 70 m [230 ft]**
operating pressure: 10 bar [232 psi]*
temperature: 120° C [248° F]*
max rotational speed: 1750 min−1
gasket/mechanical seal: magnetic coupling
installation: vertical
self-priming: yes
bearing: plain bearing
materials: spheroidal graphite iron / cast steel, austenitic steel
standards: ISO 15783
explosion protection: category 2 / zone 1
