* higher pressures and temperatures on request
** depending on size and speed

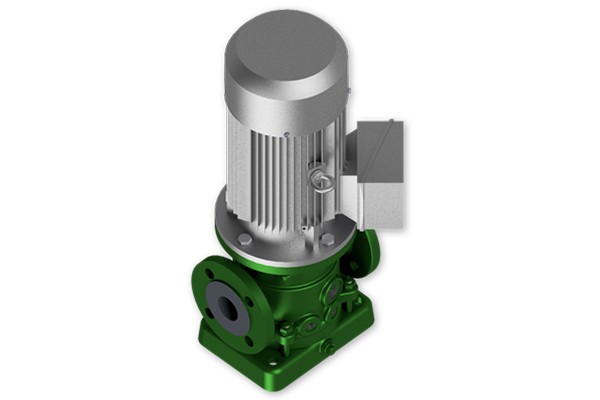

Type WPV
single-stage side channel pump with shaft seal, vertically positioned
Q max: 32 m³/h [141 g.p.m.]**
H max: 70 m [230 ft]**
operating pressure: 10 bar [145 psi]*
temperature: 100° C [212° F]*
The Type WPV is a single-stage, self-priming side channel pump in a vertical position with opposing suction and discharge ports.
In addition to the self-priming ability side channel pumps have the advantage due to their high pressure factor to work more economically when pumping small flow rates against relatively high pressure level than normal centrifugal pumps.
The atmosphere is sealed by chambered O-rings. The pump shaft is mounted in a rolling bearing.
The additional motor is directly mounted, an additional mechanical coupling is eliminated.
- ship technology / marine
- refueling equipment & aviation
- tank storages / tank farms
- renewable energy / environmental engineering
Q max: 32 m³/h [141 g.p.m.]**
H max: 70 m [230 ft]**
operating pressure: 10 bar [145 psi]*
temperature: 100° C [212° F]*
max rotational speed: 1750 min−1
gasket/mechanical seal: mechanical seal
installation: vertical
self-priming: yes
bearing: rolling bearing
materials: spheroidal graphite iron / cast steel, austenitic steel
standards: ISO 5199
explosion protection: category 2 / zone 1
